NL-1 aside — test-time training you can see

A second companion to NL-1, for when the random key/value toy (where the self-supervised error comes from) feels abstract. This is the original Test-Time Training (Sun, Wang, Liu, Miller, Efros & Hardt, ICML 2020) — the image-classification ancestor of NL-1’s sequence TTT, and an ancestor by descent, not just by analogy: Yu Sun is first author on both, five years apart — and it makes “where does the self-supervised error come from?” something you can watch on real digits.

Runs on CPU in a couple of minutes; PyTorch throughout, plus a one-time ~11 MB MNIST download (cached locally). Open In Colab

The trick, in one breath: take a digit image, rotate it by 0°/90°/180°/270° yourself, and train the network to predict which rotation you applied. The rotation is a free label you manufactured from the image — no human annotation. At test time, on weird/corrupted images, the network adapts its features by getting better at that rotation task — using no class labels at all — and its digit-recognition accuracy recovers.

Two heads on a shared trunk: classification (outer loss, real labels, training only) and rotation (inner loss, self-supervised, runs at test time).

1. The data and the self-supervised task

MNIST digits. The classification label (which digit) is the outer supervision — used only in training. The rotation label is self-supervised: we rotate each image by a known multiple of 90° and the angle index 0,1,2,3 is the target. We made it up from the image, so it costs nothing and needs no annotator.

import gzip
import os
import urllib.request

import matplotlib.pyplot as plt
import numpy as np
import torch
import torch.nn as nn
import torch.nn.functional as F


def prepare_mnist():
    root = os.path.expanduser("~/.cache/cl-course-data")
    os.makedirs(root, exist_ok=True)
    base = "https://ossci-datasets.s3.amazonaws.com/mnist/"
    files = {
        "trX": "train-images-idx3-ubyte.gz",
        "trY": "train-labels-idx1-ubyte.gz",
        "teX": "t10k-images-idx3-ubyte.gz",
        "teY": "t10k-labels-idx1-ubyte.gz",
    }

    def load(fn, img):
        p = os.path.join(root, fn)
        if not os.path.exists(p):
            print("downloading", fn, "(one time)...")
            urllib.request.urlretrieve(base + fn, p)
        with gzip.open(p, "rb") as f:
            d = f.read()
        return (
            np.frombuffer(d, np.uint8, offset=16).reshape(-1, 28, 28) if img else np.frombuffer(d, np.uint8, offset=8)
        )

    return (load(files["trX"], 1), load(files["trY"], 0), load(files["teX"], 1), load(files["teY"], 0))


trXn, trYn, teXn, teYn = prepare_mnist()
torch.manual_seed(0)
trX = torch.tensor(trXn / 255.0, dtype=torch.float32)
trY = torch.tensor(trYn.copy(), dtype=torch.long)
teX = torch.tensor(teXn / 255.0, dtype=torch.float32)
teY = torch.tensor(teYn.copy(), dtype=torch.long)
tr = torch.randperm(len(trX))[:12000]
trX, trY = trX[tr], trY[tr]  # subsample for CPU speed
te = torch.randperm(len(teX))[:2000]
teX, teY = teX[te], teY[te]
print("MNIST:", tuple(trX.shape), "train /", tuple(teX.shape), "test")

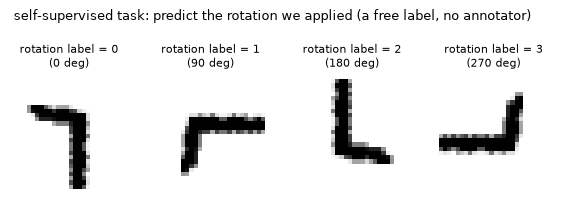

# the self-supervised task: predict which rotation was applied (the angle is the label)
img = teX[1]
fig, ax = plt.subplots(1, 4, figsize=(7, 2))
for k in range(4):
    ax[k].imshow(torch.rot90(img, k, [0, 1]), cmap="gray_r")
    ax[k].axis("off")
    ax[k].set_title(f"rotation label = {k}\n({k * 90} deg)", fontsize=8)
fig.suptitle("self-supervised task: predict the rotation we applied (a free label, no annotator)", y=1.12, fontsize=9)
plt.show()
downloading train-images-idx3-ubyte.gz (one time)...
downloading train-labels-idx1-ubyte.gz (one time)...
downloading t10k-images-idx3-ubyte.gz (one time)...
downloading t10k-labels-idx1-ubyte.gz (one time)...
MNIST: (12000, 28, 28) train / (2000, 28, 28) test

2. Train two heads on clean digits

A shared convolutional trunk feeds two linear heads:

  • classification head — trained on the real digit labels (the outer, supervised loss);
  • rotation head — trained to predict the rotation of a rotated copy (the inner, self-supervised loss).

Both losses train the shared trunk, so the trunk learns features that serve recognition and are sensitive to image orientation. That shared trunk is what test-time adaptation will later tune.

class Net(nn.Module):
    def __init__(self):
        super().__init__()
        self.trunk = nn.Sequential(
            nn.Conv2d(1, 16, 3, padding=1),
            nn.BatchNorm2d(16),
            nn.ReLU(),
            nn.MaxPool2d(2),  # 14x14
            nn.Conv2d(16, 32, 3, padding=1),
            nn.BatchNorm2d(32),
            nn.ReLU(),
            nn.MaxPool2d(2),  # 7x7
            nn.Flatten(),
            nn.Linear(32 * 7 * 7, 64),
            nn.BatchNorm1d(64),
            nn.ReLU(),
        )
        self.cls = nn.Linear(64, 10)  # outer head (digit) -- needs labels
        self.rot = nn.Linear(64, 4)  # inner head (rotation) -- self-supervised

    def feat(self, x):
        return self.trunk(x.unsqueeze(1))


def rot_batch(x):  # 4 rotations of each image; the angle index is the label
    xs = [x] + [torch.rot90(x, k, [1, 2]) for k in (1, 2, 3)]
    return torch.cat(xs), torch.cat([torch.full((len(x),), k) for k in range(4)])


torch.manual_seed(0)
net = Net()
opt = torch.optim.Adam(net.parameters(), 1e-3)
for epoch in range(3):
    net.train()
    for i in range(0, len(trX), 128):
        xb, yb = trX[i : i + 128], trY[i : i + 128]
        cls_loss = F.cross_entropy(net.cls(net.feat(xb)), yb)  # OUTER: real digit labels
        rx, ry = rot_batch(xb)
        rot_loss = F.cross_entropy(net.rot(net.feat(rx)), ry)  # INNER: self-supervised rotation
        opt.zero_grad()
        (cls_loss + rot_loss).backward()
        opt.step()


def accuracy(model, X, Y):
    model.eval()
    with torch.no_grad():
        preds = torch.cat([model.cls(model.feat(X[i : i + 256])).argmax(1) for i in range(0, len(X), 256)])
    return (preds == Y).float().mean().item()


clean_acc = accuracy(net, teX, teY)
print(f"clean test accuracy: {clean_acc:.3f}")
clean test accuracy: 0.979

3. A distribution shift breaks it

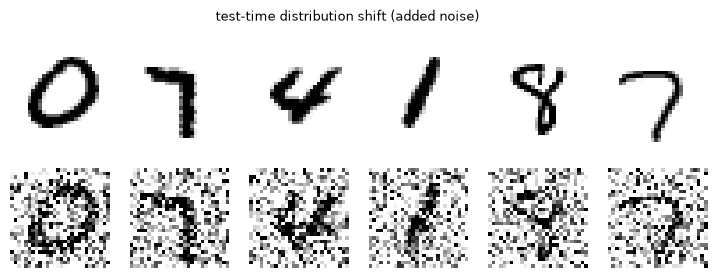

Now the test images are corrupted — heavy noise the model never saw in training (a stand-in for the real-world shifts TTT was built for: blur, weather, sensor noise…). The features no longer match what the classifier expects, and accuracy collapses toward chance.

def corrupt(X, std=0.6):
    torch.manual_seed(1)
    return (X + std * torch.randn_like(X)).clamp(0, 1)


teXc = corrupt(teX)
fig, ax = plt.subplots(2, 6, figsize=(9, 3))
for j in range(6):
    ax[0, j].imshow(teX[j], cmap="gray_r")
    ax[0, j].axis("off")
    ax[1, j].imshow(teXc[j], cmap="gray_r")
    ax[1, j].axis("off")
ax[0, 0].set_ylabel("clean", fontsize=8)
ax[1, 0].set_ylabel("corrupted", fontsize=8)
fig.suptitle("test-time distribution shift (added noise)", fontsize=9)
plt.show()

corrupted_acc = accuracy(net, teXc, teY)
print(f"clean accuracy {clean_acc:.3f}   ->   corrupted accuracy {corrupted_acc:.3f}  (no adaptation)")

clean accuracy 0.979   ->   corrupted accuracy 0.110  (no adaptation)

4. Test-time training: fix it with no labels

Here is the whole point. We adapt the network on the corrupted test images themselves, by gradient descent on the rotation loss only — rotating each corrupted image and predicting the angle. We never touch the digit labels. Improving the self-supervised task pulls the shared trunk’s features back into a sensible range for this corrupted distribution, and the (untouched) classification head rides along — its accuracy recovers.

The error signal at test time is manufactured from the data (the rotations we applied), exactly as in NL-1 §1’s reconstruction loss. No annotations required.

import copy

adapted = copy.deepcopy(net)
opt_t = torch.optim.Adam(adapted.parameters(), 1e-3)
for epoch in range(3):
    adapted.train()
    for i in range(0, len(teXc), 128):
        rx, ry = rot_batch(teXc[i : i + 128])  # rotations of CORRUPTED test images
        loss = F.cross_entropy(adapted.rot(adapted.feat(rx)), ry)  # self-supervised: NO digit labels
        opt_t.zero_grad()
        loss.backward()
        opt_t.step()

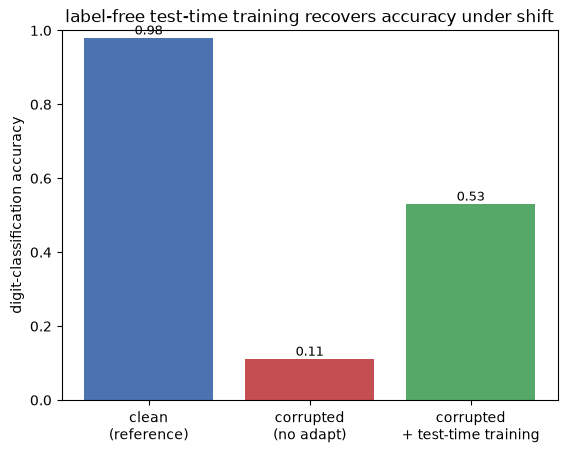

ttt_acc = accuracy(adapted, teXc, teY)
labels = ["clean\n(reference)", "corrupted\n(no adapt)", "corrupted\n+ test-time training"]
vals = [clean_acc, corrupted_acc, ttt_acc]
plt.bar(labels, vals, color=["#4c72b0", "#c44e52", "#55a868"])
for i, v in enumerate(vals):
    plt.text(i, v + 0.01, f"{v:.2f}", ha="center", fontsize=9)
plt.ylabel("digit-classification accuracy")
plt.ylim(0, 1)
plt.title("label-free test-time training recovers accuracy under shift")
plt.show()
print(
    f"corrupted {corrupted_acc:.3f}  ->  after test-time training {ttt_acc:.3f}  "
    f"(+{ttt_acc - corrupted_acc:.2f}, using zero class labels)"
)

corrupted 0.110  ->  after test-time training 0.530  (+0.42, using zero class labels)

So — where did the error come from? (tangible version)

Exactly the two levels from the random-vector aside, now visible:

  • Inner loss — self-supervised, no labels, runs at test time. Predict the rotation we applied. The target is made from the image (we chose the angle), so it needs no annotation. This is what adapted the network to the corrupted images, with the class labels never consulted.
  • Outer loss — supervised, labels, training only. Digit classification. During training it shaped the shared trunk so that getting better at rotation also keeps features good for classification — that alignment is what makes the label-free inner loop useful. (With a random trunk, adapting the rotation task would do nothing for classification — same lesson as §A of the other aside.)

So it’s meta-learning: the outer loop (labels, training) configures a self-supervised inner loop so that at test time the inner loop alone — no labels — can adapt the model to new, shifted data. This is the same idea as NL-1’s sequence TTT; the only change is the form of the self-supervised loss (predict-the-rotation here, reconstruct-a-token-view there). The supervision was never missing at test time — it was always manufactured from the data itself.
